Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
Type
Wire Gauge (SWG)
Barb Distance (cm)
Barb Length (cm)

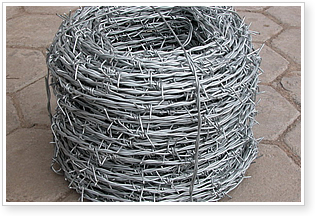

Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
10# x 12#
7.5-15
1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#

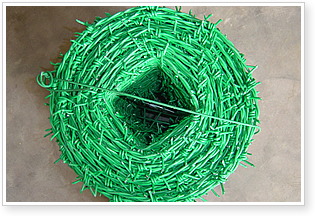

PVC coated barbed wire; PE barbed wire
before coating
after coating
1.0mm-3.5mm
1.4mm-4.0mm
BWG11#-20#
BWG8#-17#
SWG11#-20#
SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
